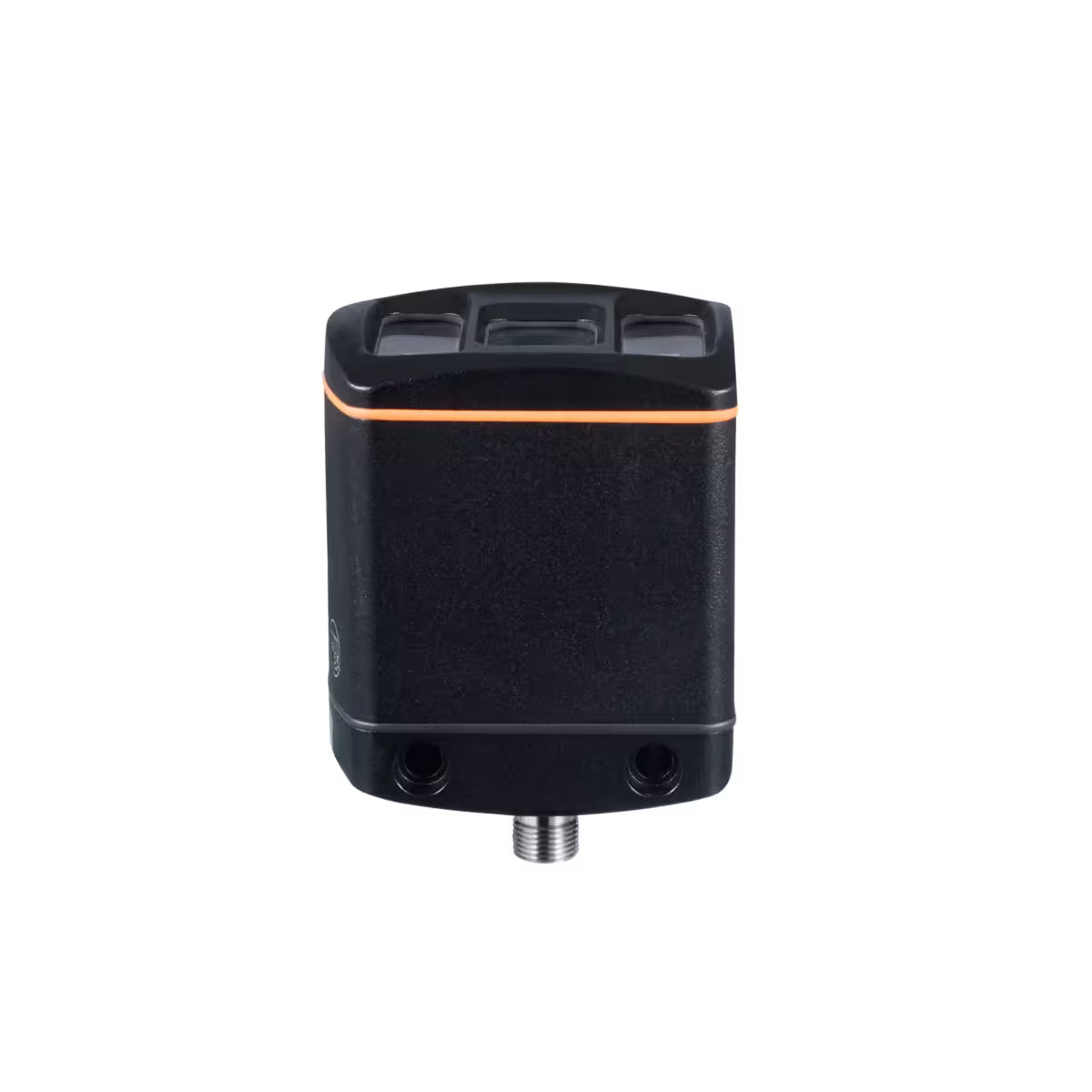

سنسور سه‌بعدی ماشین‌ویژن ifm مدل O3D300

مشخصات فنی

نوع

3D Inspection Camera

Visual Field (Max)

2.6m x 3.4m

Visual Field (Min)

260.0mm x 350.0mm

Installation Distance

300.0mm ~ 10.0m

وضوح اندازه‌گیری

176 x 132 (23,232 Pixels)

منبع نور

Integrated (Infrared)

Scan Rate

25 scans/s

ولتاژ تغذیه

20.4 ~ 28.8VDC

نوع نصب

Chassis Mount

درجه حفاظت

IP65/IP67 - Dust Tight, Water Resistant, Waterproof

نوع اتصال

Connector

دمای کار

-10°C ~ 50°C

Type of light

infrared light

Image resolution 3D [px]

176 x 132

Angle of aperture 3D [°]

40 x 30; (nominal value without lens distortion correction)

Max. reading rate [Hz]

25

Housing

rectangular

کاربرد

dimensioning of the object; completeness monitoring; Level monitoring; distance monitoring; volume monitoring; robot gripper navigation; depalletizing

Operating voltage tolerance [%]

-15...20

ولتاژ کاری

24 DC; (EN 61131-2)

Current consumption [mA]

< 350; (typical value: 420)

Max. current consumption [mA]

830; (mean value at 24 VDC; with switched outputs; < 1600 peak current pulsed)

Protection class

III

Overvoltage category

II

Image sensor

PMD 3D ToF-Chip

Internal lighting

yes; (infrared: 850 nm)

Number of inputs and outputs

Number of digital inputs: 3; Number of digital outputs: 3; Number of analogue outputs: 1

Trigger

24 V PNP/NPN (IEC 61131-2 Typ 3)

تعداد ورودی دیجیتال

3

Input circuit of digital inputs

24 V PNP/NPN; (configurable; IEC 61131-2 Typ 3)

Total number of outputs

3

تعداد خروجی دیجیتال

3; (configurable)

Output function

24 V PNP/NPN; (EN 61131-2)

Max. voltage drop switching output DC [V]

1

Max. current load per output [mA]

100

Number of analogue outputs

1

Analogue current output [mA]

4...20

Max. load [Ω]

500

Analogue voltage output [V]

0...10

Min. load resistance [Ω]

10000

Min. load [Ω]

230

حفاظت اتصال کوتاه

دارد

Type of short-circuit protection

pulsed

Overload protection

دارد

Operating distance [mm]

300...10000

Note on operating distance

object size: 200 x 200 mm; reflectivity: 18 %

Measuring range [m]

< 30

Parameter setting options

via PC with ifm Vision Assistant

رابط ارتباطی

Ethernet

Number of Ethernet interfaces

1

Transmission standard

10Base-T; 100Base-TX

Transmission rate

10; 100

پروتکل

TCP/IP; PROFINET IO; EtherNet/IP

Factory settings

IP address: 192.168.0.69; subnet mask: 255.255.255.0; gateway IP address: 192.168.0.201

دمای محیط

-10...50

Storage temperature [°C]

-40...85

درجه حفاظت

IP 65; IP 67

Max. immunity to extraneous light [klx]

8; (with reduced measuring accuracy and repeatability: < 100)

EMC

DIN EN 61000-6-4: radiation of interference / industrial environments; DIN EN 61000-6-2: immunity / industrial environments

Shock resistance

DIN EN 60068-2-27: 50 g / (11 ms) not repetitive; DIN EN 60068-2-27: 40 g / (6 ms) repetitive

Vibration resistance

DIN EN 60068-2-6: 2 g / (10...150 Hz); DIN EN 60068-2-64: 2.3 g RMS / (10...500 Hz)

Photobiological safety

exempt group; (DIN EN 62471)

Electrical safety

DIN EN 61010-2-201: electrical supply only via PELV circuits

MTTF [years]

43

Weight [g]

803.5

Dimensions [mm]

72 x 67.1 x 82.6

Materials

housing: diecast aluminium; front pane: gorilla glass; function display: PA

Display

function: 2 x LED, green Ethernet operation; switching status: 2 x LED, yellow OUT 1 OUT 2

Items supplied

Protective covers

Pack quantity

1 pcs.

Connector

1 x M12; coding: A; Contacts: 8

اسناد و دیتاشیت

بازبینی منبع: 2026-09-18

شرح محصول

سنسور سه‌بعدی ماشین‌ویژن ifm با پارت‌نامبر O3D300؛ نوع: 3D Inspection Camera؛ Visual Field (Max): 2.6m x 3.4m؛ Visual Field (Min): 260.0mm x 350.0mm. مشخصات فنی، وضعیت و امکان تأمین پیش از ثبت سفارش کنترل می‌شود.
