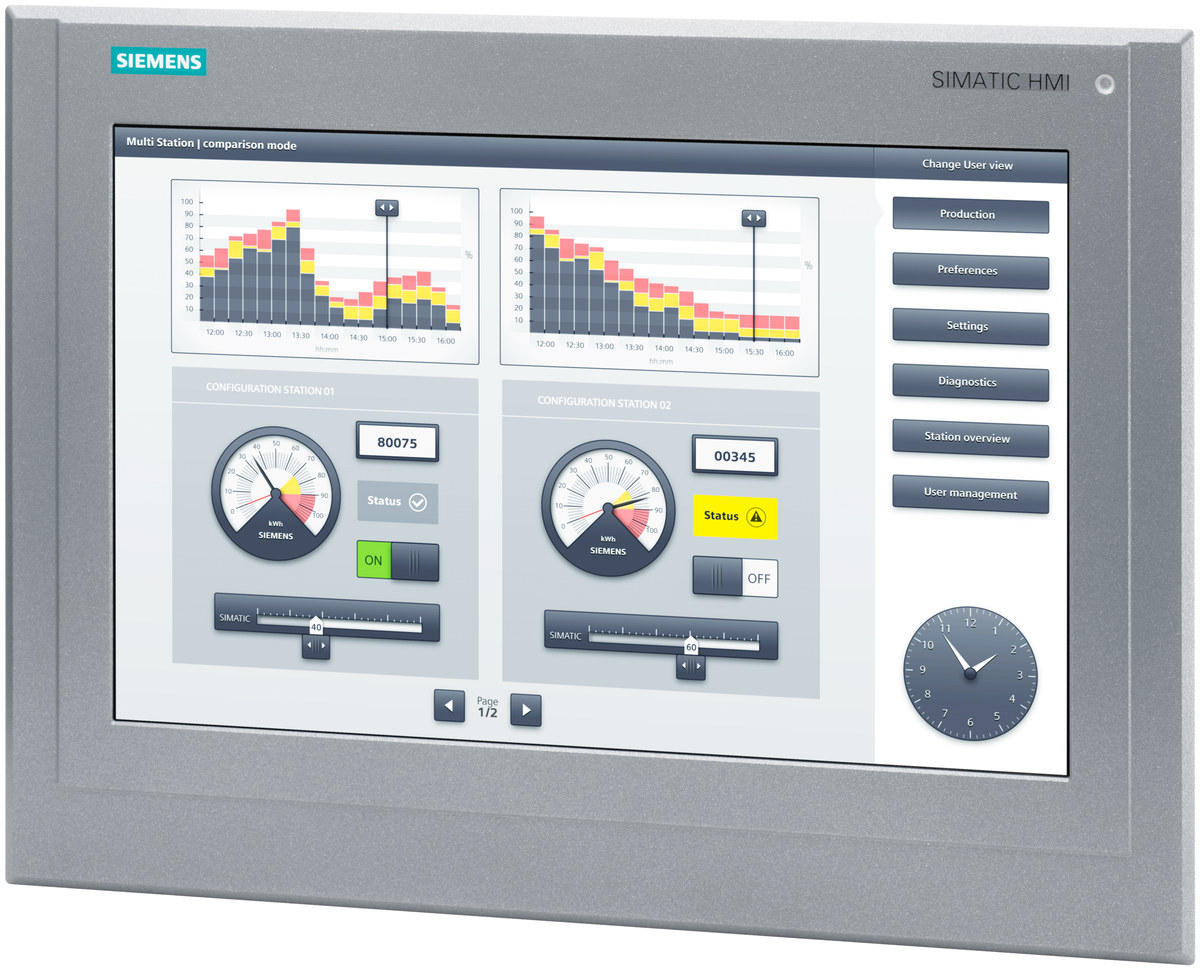

Industrial operator panel Siemens model 6AV21240QC130AX0

Industrial operator panel Siemens model 6AV21240QC130AX0, Part number 6AV21240QC130AX0

Check the part number and technical specifications before selection; an image alone is not sufficient for matching.

Manufacturer part number
6AV21240QC130AX0
Manufacturer
Siemens
ARAN VISION part number
AV-FEED-1J7LXXL
Category
PLC and HMI
Product description
Industrial operator panel Siemens part number 6AV21240QC130AX0; Product type designation: TP1500 Comfort Outdoor; Display width: 331.2 mm; Display height: 207 mm. Technical specifications, condition and supply feasibility are checked before ordering.
Manufacturer standard lead time
Manufacturer confirmation required

Manufacturer replenishment time; delivery to you is confirmed separately.

Product attributes

Product type designation
TP1500 Comfort Outdoor
Display width
331.2 mm
Display height
207 mm
Mounting position
vertical
Type of supply voltage
DC
Rated value (DC)
24 V
permissible range, lower limit (DC)
19.2 V
permissible range, upper limit (DC)
28.8 V
Number of industrial Ethernet interfaces
2
Industrial Ethernet status LED
2
PROFINET
Yes
Supports protocol for PROFINET IO
Yes
PROFIBUS
Yes
EtherNet/IP
Yes
IP (at the front)
IP66
IP (rear)
IP20
Ethernet
Yes
MPI/PROFIBUS DP
Yes
Allen Bradley (EtherNet/IP)
Yes
Width of the housing front
415 mm
Height of housing front
310 mm
Mounting cutout, width
396 mm
Mounting cutout, height
291 mm
mounting depth
73.2 mm
Display Type
TFT, bonded, daylight-readable
Screen diagonal
15.4 in
Number of colors
16 777 216
Horizontal image resolution
1 280 pixel
Vertical image resolution
800 pixel
MTBF backlighting (at 25 °C)
50 000 h
Backlight dimmable
Yes; LED, can be dimmed manually or automatically
Number of function keys
0
Number of function keys with LEDs
0
Keys with LED
No
System keys
No
Numeric keyboard
Yes; Onscreen keyboard
