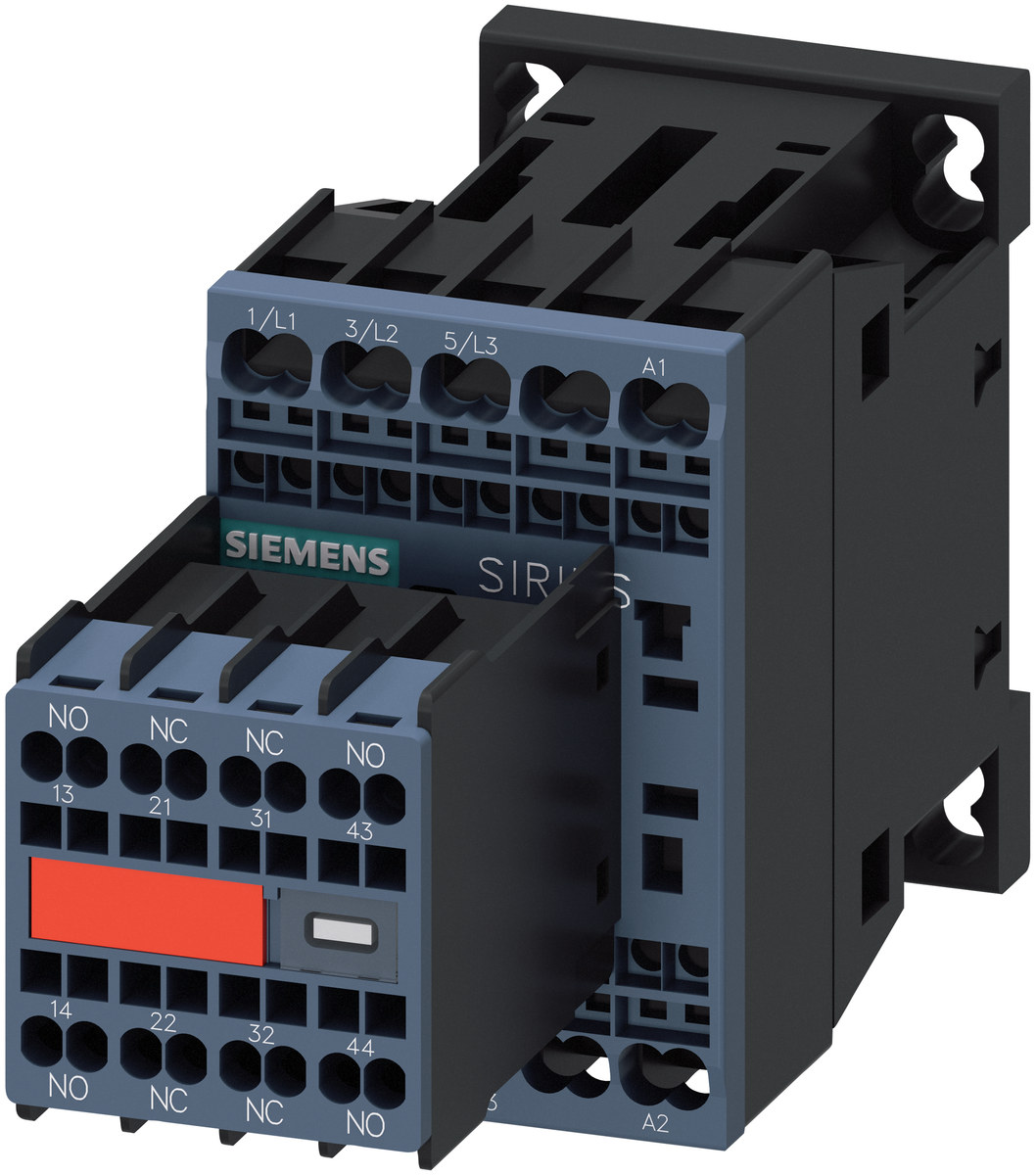

کنتاکتور صنعتی Siemens مدل 3RT20182AK643MA0

مشخصات فنی

نوع و مدل محصول

3RT2

function module for communication

ندارد

وزن خالص

0.282 kg

حداکثر ارتفاع نصب از سطح دریا

2 000 m

type of voltage of the control supply voltage

AC

وضعیت نصب

+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

ارتفاع

70 mm

عرض

45 mm

عمق

121 mm

درجه حفاظت بخش جلو طبق IEC 60529

IP20

نام تجاری محصول

SIRIUS

عنوان محصول

Power contactor

size of contactor

S00

auxiliary switch

ندارد

در حالت کارکرد گرم با برق AC

3 W

at AC in hot operating state per pole

1 W

without load current share typical

1.7 W

type of calculation of power loss current-dependent

quadratic

of main circuit with degree of pollution 3 rated value

690 V

of auxiliary circuit with degree of pollution 3 rated value

690 V

of main circuit rated value

6 kV

of auxiliary circuit rated value

6 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1

400 V

at AC

7,3 g / 5 ms, 4,7 g / 10 ms

of contactor typical

10 000 000

of the contactor with added electronically optimized auxiliary switch block typical

5 000 000

of the contactor with added auxiliary switch block typical

10 000 000

reference code according to IEC 81346-2

Q

Substance Prohibitance (day/month/year)

10/01/2009

SVHC substance name

2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) CAS-No. 3147-75-9

during operation

-25 ... +60 °C

during storage

-55 ... +80 °C

relative humidity minimum

10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum

95 %

number of poles for main current circuit

3

number of NO contacts for main contacts

3

اسناد و دیتاشیت

بازبینی منبع: 2026-10-24

شرح محصول

کنتاکتور صنعتی Siemens با پارت‌نامبر 3RT20182AK643MA0؛ function module for communication: ندارد؛ type of voltage of the control supply voltage: AC؛ without load current share typical: 1.7 W. مشخصات فنی، وضعیت و امکان تأمین پیش از ثبت سفارش کنترل می‌شود.
