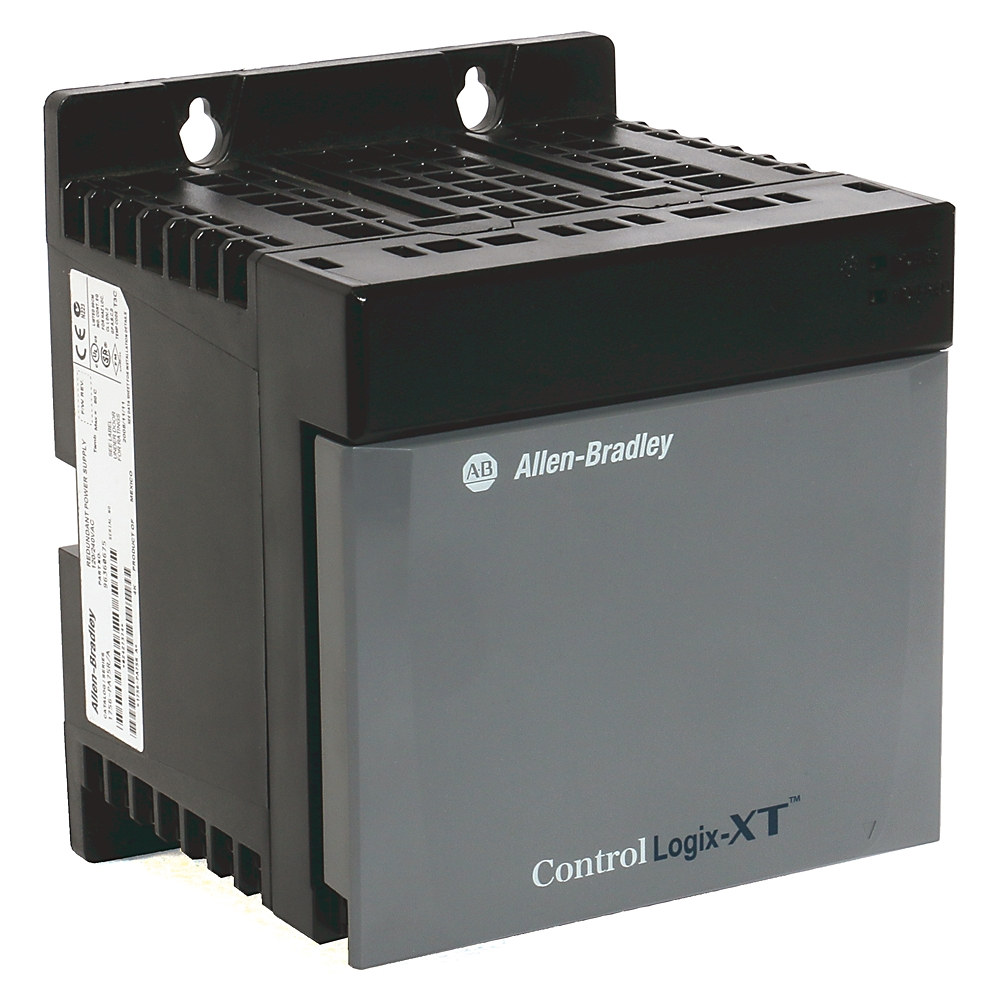

منبع تغذیه صنعتی Allen-Bradley مدل 1756-PA75R

مشخصات فنی

Lifecycle Status

فعال

Repair Options Available

دارد

Connection Cables

1756-CPR2

Frequency Rating

47...63Hz

Output Voltage and Current

5V DC @ 13A, 3.3V DC @ 4A,

Redundant Configuration

true

Annunciator power

240V AC 50/60 Hz, 240V DC @ 50mA, resistive only

Conductor screw torque

0.565 nm

Current capacity

4A @ 3.3V DC

عمق

137 mm

Enclosure type rating

None (open-style)

ارتفاع

175 mm

مدت پشتیبانی باتری

2 cycles @ 60 Hz, 2 cycles @ 50 Hz

فرکانس ورودی

47 Hz

Input power, max

120VA/115 W

Input voltage at AC 50 Hz

85 V

Input voltage at AC 60 Hz

85 V

Input voltage, nom

120/240V AC

Inrush current, max

20 A

ISAGX

false

دمای کاری

0 to 60 °C

Output voltage at DC

5.1 V

Pilot duty rating

Annunciator - not rated

خروجی توان

75 W

Power output, max

75 W @ 0...60 °C (32...140 °F)

Redundancy capable

false

رطوبت نسبی

5...95% noncondensing

Rockwell tire and rubber rated

false

Shock

Operating: 30 G

Suitable for safety functions

false

Type of output voltage

DC

Type of voltage (input voltage)

AC

Vibration

2 G @ 10...500 Hz

Voltage variation

IEC 61000-4-11: 30% dips for 1 period at 0° and 180° on AC supply ports, 60% dips for 5 and 50 periods on AC supply ports, ±10% fluctuations for 15 min on AC supply ports, >95% interruptions for 250 periods on AC supply ports

وزن

1.45 kg

عرض

145 mm

اسناد و دیتاشیت

بازبینی منبع: 2026-10-24

شرح محصول

منبع تغذیه صنعتی Allen-Bradley با پارت‌نامبر 1756-PA75R؛ Frequency Rating: 47...63Hz؛ Output Voltage and Current: 5V DC @ 13A, 3.3V DC @ 4A,؛ Annunciator power: 240V AC 50/60 Hz, 240V DC @ 50mA, resistive only. مشخصات فنی، وضعیت و امکان تأمین پیش از ثبت سفارش کنترل می‌شود.
